• 16" painted cast aluminum wheels
• (5) P235/70R16 all-season OWL tires
• Black roof rails
• Black molded-in-color bumpers/cladding
• Chrome 3-bar grille w/nostrils
• Auto-off headlamps
• Fog lamps
• Black fold-away pwr mirrors -inc: approach lamps
• Rear row privacy glass
• Intermittent windshield wipers
• Black molded-in-color door handles
• Composite material cargo bed -inc: (3) integrated storage compartments
• Pwr door locks-inc: 2-stage unlocking, autolock

• AM/FM stereo w/CD/MP3 player-inc: audio input jack
• Sirius Satellite radio -inc: 6-month subscription, roof-mounted antenna

• Cloth low-back front bucket seats -inc: 2-way adjustable headrests, 4-way manual seat adjusters
• 60/40 split folding rear bench seat
• Low series floor console -inc: cup holders, armrest, storage, (1) front on floor console, (1) front row in floor console, (1) rear row on rear of floor console pwr points
• Rubber floor covering -inc: w/HD berber front/rear floor mats
• Color keyed 4-spoke leather-wrapped tilt steering wheel w/audio & cruise controls
• Message center-inc: outside temp, compass
• Pwr windows
• Power sliding rear window
• SecuriLock remote keyless entry -inc: (2) key fobs
• SecuriLock passive anti-theft system
• Accessory delay
• Air conditioning
• Rear window defogger
• Illuminated glove box
• Overhead console
• Color keyed sun visors -inc: illum vanity mirrors
• Grab handles-inc: (1) front passenger/(2) rear
• (2) color keyed coat hooks
• Illuminated entry
• Cargo area tie downs
• Cargo area pwr point

• 4-wheel anti-lock brake system
• AdvanceTrac w/Roll Stability Control (RSC)
• Driver & front passenger air bags -inc: front passenger on/off switch
• Side seat air bags
• Side curtain air bags w/rollover protection
• Height adjustable safety belts
• Belt-Minder
• Child safety rear door locks
• LATCH system for rear outboard seating positions
• SOS Post Crash Alert System
• Tire pressure monitoring system

4.0L SOHC 12-VALVE V6 ENGINE

• (STD)

• 4.0L SOHC 12-VALVE V6 ENGINE (STD)
• Four Wheel Drive
• Power Steering
• 4-Wheel Disc Brakes
• Traction Control
• Stability Control
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Fog Lamps
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Power Door Locks
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Cloth Seats
• Bucket Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Cruise Control
• Adjustable Steering Wheel
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Power Windows
• Sliding Rear Window
• Keyless Entry
• Power Door Locks
• Immobilizer
• Immobilizer
• A/C
• Rear Defrost
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Power Outlet
• ABS
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Child Safety Locks
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3140
• Gross Axle Wt Rating - Rear (lbs): 3340
• Curb Weight - Front (lbs): 2646
• Curb Weight - Rear (lbs): 2107
• Gross Vehicle Weight Rating Cap (lbs): 6160
• Gross Combined Wt Rating (lbs): 10000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 525
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Independent
• Spring Capacity - Front (lbs): 3140
• Spring Capacity - Rear (lbs): 3400
• Axle Type - Front: Twin-forged SLA
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3240
• Axle Capacity - Rear (lbs): 3600
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 32.0
• Shock Absorber Diameter - Rear (mm): 32.0
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.77
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.97 x 0.43
• Rear Brake Rotor Diam x Thickness (in): 11.81 x 0.39
• Tires
• Front Tire Order Code: T53
• Rear Tire Order Code: T53
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): 1700
• Rear Tire Capacity (lbs): 1700
• Spare Tire Capacity (lbs): 1700
• Revolutions/Mile @ 45 mph - Front: 721
• Revolutions/Mile @ 45 mph - Rear: 721
• Revolutions/Mile @ 45 mph - Spare: 721
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 18.9
• Turning Diameter - Curb to Curb (ft): 36.8
• Turning Diameter - Wall to Wall (ft): 38.4
• Frame
• Frame Type: Fully boxed ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 130.5
• Length, Overall w/o rear bumper (in): 210.2
• Width, Max w/o mirrors (in): 73.7
• Height, Overall (in): 72.5
• Overhang, Front (in): 35.4
• Overhang, Rear w/o bumper (in): 44.3
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 30.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 49.6
• Cargo Box Width @ Top, Rear (in): 49.5
• Cargo Box Width @ Floor (in): 61.4
• Cargo Box Width @ Wheelhousings (in): 45.0
• Cargo Box (Area) Height (in): 21.2
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 37.5
• Ext'd Cab Cargo Volume (ft³): 44.4
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.8
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 59.0
• Front Hip Room (in): 55.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 36.9
• Second Shoulder Room (in): 59.0
• Second Hip Room (in): 55.5
• Summary

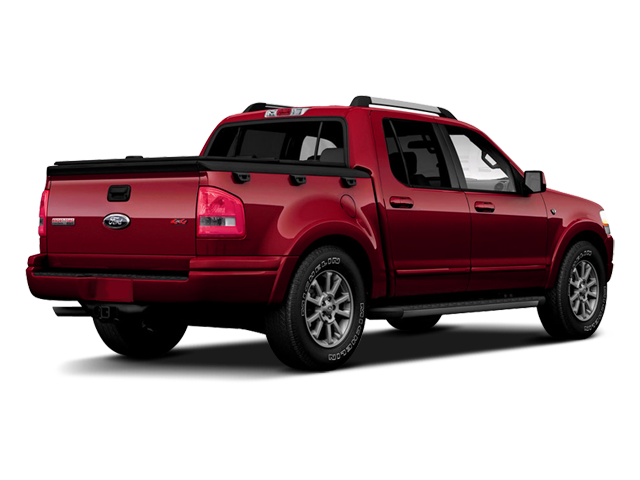

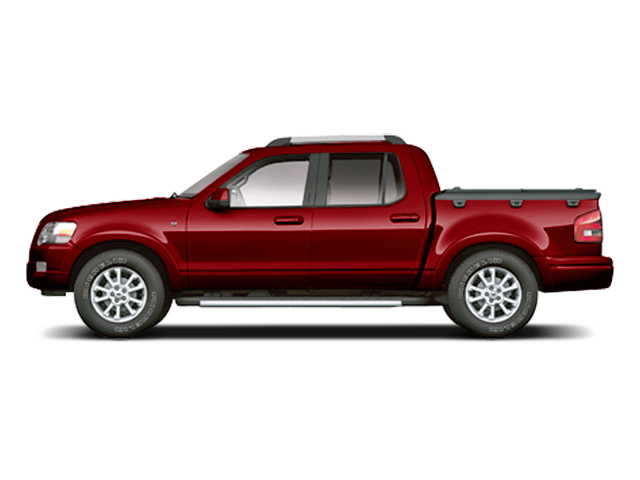

• Vehicle Name: Ford Explorer Sport Trac
• Body Style: 4 Door
• Body Code: 131" WB
• Emissions
• EPA Greenhouse Gas Score: 3
