• Differential, automatic locking rear (Included with (NW7) traction control on all 2WD models)
• Transfer case, Insta-Trac, electronic shift with dash-mounted controls (Standard on 4WD models only)
• Four wheel drive
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Alternator, 125 amps
• Pickup box, Fleetside, all-welded steel with double-wall construction and corrosion protection with 4 cargo tie-downs
• Suspension, front independent with torsion bar (Standard on 4WD models only)
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Front underbody shield (4WD models only)
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, front disc/rear drum

• Wheels, 4 - 15" x 7" (38.1 cm x 17.8 cm) cast aluminum (Included and only available with (Z71) High Stance Off-Road Suspension Package)
• Tires, P235/75R15 all-season, blackwall (4WD models only. Included with (Z85) Heavy-Duty Suspension Package)
• Tire, compact spare located at rear underbody of vehicle (Not available with (Z71) High Stance Off-road Suspension Package. Upgradeable to (ZET) P225/75R15 all-season, blackwall spare tire on 2WD models and (ZFL) P235/75R15 all-season, blackwall spare tire on 4WD models with (Z85) Heavy-Duty Suspension Package)
• Wheel flares, front and rear, small, body-color (Z85 only) (Included and only available on 4WD models with (Z85) Heavy-Duty Suspension Package and 2WD models with (Z85) Heavy-Duty Suspension Package and (N83) 4 - 15" x 7" (38.1 cm x 17.8 cm) chrome finish styled aluminum wheels.)
• Mirrors, outside power-adjustable, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver-and front passenger-side glass)
• Fog lamps, front, halogen
• Recovery hooks, 2 front, frame-mounted (Included with all 2WD and 4WD (Z71) High Stance Off-Road Suspension Package models. Included on 4WD models with (Z85) Heavy-Duty Suspension Package.)
• Bumpers, front and rear chrome with a Dark Smoke Gray pad on the rear step-style bumper
• Air dam, Ebony
• Fascia, front Dark Smoke Gray
• Daytime Running Lamps, with automatic exterior lamp control
• Window, rear sliding
• Wipers, front intermittent with washers
• Bedliner
• Tailgate, 2-position (Locking feature on Crew Cab models only)

• Audio system, AM/FM stereo with CD/MP3 player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and 2 speakers on Regular Cab SL, 4 on Regular Cab SLE and Extended Cab SL and 6 on Extended and Crew Cab SLE (Upgradeable to (UC6) AM/FM stereo with 6-disc CD changer. Includes (UE1) OnStar)

• Seats, front bucket with leather-appointed seating 8-way power driver seat adjuster, 6-way power front passenger seat adjuster, heated driver and front passenger seats with power lumbar control and adjustable outboard head restraints
• Floor covering, color-keyed carpeting
• Floor mats, rubberized-vinyl front
• Mirror, inside rearview auto-dimming with compass and outside temperature display
• SLT decor (Leather-appointed seating)
• Seats, second row, flat-folding (Crew Cab models only)
• Steering wheel, leather-wrapped
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASSlock
• Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active
• Tire Pressure Monitor
• Cruise control
• Air conditioning, single-zone manual
• Power outlets, 2 auxiliary, covered, 12-volt
• Accents, interior, chrome finish door handles, air outlets, front door sill plates, accents on front upper door speaker grilles and uplevel instrument cluster bezel
• Door trim, integral armrests and driver- and front passenger-side map pockets with padded cloth inserts
• Visors, driver and front passenger, padded with cloth, includes front passenger vanity mirror
• Assist handle, front passenger and rear outboard (Extended and Crew Cab models)
• Coat hook, driver-side rear

• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock (if equipped), OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn & Lights OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details)
• Safety belts, 3-point, rear, all seating positions
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center position lap belt with bench seat only)
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Door locks, child security rear (Crew Cab models only)

TIRE, SPARE P235/75R15 ALL-SEASON, BLACKWALL

• located at rear underbody of vehicle

SEATS, FRONT BUCKET WITH LEATHER-APPOINTED SEATING

• (STD) 8-way power driver seat adjuster
• 6-way power front passenger seat adjuster
• heated driver and front passenger seats with power lumbar control and adjustable outboard head restraints

AUDIO SYSTEM, AM/FM STEREO WITH CD/MP3 PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and 2 speakers on Regular Cab SL
• 4 on Regular Cab SLE and Extended Cab SL and 6 on Extended and Crew Cab SLE (STD)

SLT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

XM SATELLITE RADIO.

• With a wide variety of programming
• XM has something to excite any driver. Whether you want to be entertained or informed
• to laugh
• think
• or sing
• XM has the perfect channel for you-coast-to-coast
• and in digital-quality sound. 3 trial months-no obligation

ENGINE, 3.7L DOHC 5-CYLINDER MFI

• (242 hp [180.4 kW] @ 5600 rpm)
• 242 lb-ft [326.7 N-m] @ 4600 rpm) (STD)

SUSPENSION PACKAGE, HIGH STANCE OFF-ROAD

• includes (N90) 4-15" x 7" (38.1 cm x 17.8 cm) cast aluminum wheels (3SA and 3SB) and (N83) 4-15" x 7" (38.1 cm x 17.8 cm) chrome finish styled aluminum wheels on (4SA)
• (QWU) P265/75R15 on-/off-road
• blackwall tires
• front torsion bars
• 28mm front stabilizer bar
• urethane jounce bumpers
• large wheel flares
• (G80) automatic locking rear differential and (ZFL) P235/75R15 all-season
• blackwall spare tire

TRAILERING EQUIPMENT

• includes trailer hitch and 7-wire harness

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE

• (STD)

• EBONY SLT DELUXE LEATHER SEATING SURFACES
• TIRE SPARE P235/75R15 ALL-SEASON BLACKWALL located at rear underbody of vehicle
• SEATS FRONT BUCKET WITH LEATHER-APPOINTED SEATING (STD) 8-way power driver seat adjuster 6-way power front passenger seat adjuster heated driver and front passenger seats with power lumbar control and adjustable outboard head restraints
• AUDIO SYSTEM AM/FM STEREO WITH CD/MP3 PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and 2 speakers on Regular Cab SL 4 on Regular Cab SLE and Extended Cab SL and 6 on Extended and Crew Cab SLE (STD)
• REAR AXLE 3.73 RATIO
• SLT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• XM SATELLITE RADIO. With a wide variety of programming XM has something to excite any driver. Whether you want to be entertained or informed to laugh think or sing XM has the perfect channel for you-coast-to-coast and in digital-quality sound. 3 trial months-no obligation
• ENGINE 3.7L DOHC 5-CYLINDER MFI (242 hp [180.4 kW] @ 5600 rpm) 242 lb-ft [326.7 N-m] @ 4600 rpm) (STD)
• SUSPENSION PACKAGE HIGH STANCE OFF-ROAD includes (N90) 4-15 x 7 (38.1 cm x 17.8 cm) cast aluminum wheels (3SA and 3SB) and (N83) 4-15 x 7 (38.1 cm x 17.8 cm) chrome finish styled aluminum wheels on (4SA) (QWU) P265/75R15 on-/off-road blackwall tires front torsion bars 28mm front stabilizer bar urethane jounce bumpers large wheel flares (G80) automatic locking rear differential and (ZFL) P235/75R15 all-season blackwall spare tire
• MOLDINGS DARK SMOKE GRAY BODYSIDE
• LICENSE PLATE BRACKET FRONT
• SONOMA RED METALLIC
• AIR BAGS HEAD CURTAIN SIDE-IMPACT FRONT AND REAR OUTBOARD SEATING POSITIONS
• TRAILERING EQUIPMENT includes trailer hitch and 7-wire harness
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE (STD)
• TIRES P265/75R15 ON-/OFF-ROAD BLACKWALL
• SUN AND SOUND PACKAGE NOT DESIRED
• TRAILER WIRING HARNESS HEAVY DUTY
• Keyless Entry
• Power Door Locks
• Power Mirror(s)
• Power Windows
• Privacy Glass
• Sliding Rear Window
• Locking/Limited Slip Differential
• Four Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Power Mirror(s)
• Privacy Glass
• Fog Lamps
• Tow Hooks
• Daytime Running Lights
• Automatic Headlights
• Sliding Rear Window
• Intermittent Wipers
• Bed Liner
• AM/FM Stereo
• CD Player
• MP3 Capability
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Floor Mats
• Auto-Dimming Rearview Mirror
• Leather Seats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Tire Pressure Monitor
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Telematics
• Requires Subscription
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Child Safety Locks

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2753
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 2252
• Curb Weight - Rear (lbs): 1719
• Gross Vehicle Weight Rating Cap (lbs): 5300
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2755
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2753
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QWU
• Front Tire Order Code: QFL
• Rear Tire Order Code: QWU
• Rear Tire Order Code: QFL
• Spare Tire Order Code: ZFL
• Spare Tire Order Code: ZAA
• Front Tire Size: P265/75R15
• Front Tire Size: P235/75R15
• Rear Tire Size: P265/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: P235/75R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 2074
• Front Tire Capacity (lbs): 1763
• Rear Tire Capacity (lbs): 2074
• Rear Tire Capacity (lbs): 1763
• Spare Tire Capacity (lbs): 2074
• Spare Tire Capacity (lbs): 1763
• Wheels
• Front Wheel Size (in): 15 x 6.5
• Rear Wheel Size (in): 15 x 6.5
• Spare Wheel Size (in): 15 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.3
• Steering Ratio (:1), At Lock: 3.20
• Turning Diameter - Curb to Curb (ft): 44.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Aux Fuel Tank Capacity, Approx (gal): N/A
• Fuel Tank Location: - TBD -
• Aux Fuel Tank Location: N/A
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 207.1
• Width, Max w/o mirrors (in): 68.6
• Height, Overall (in): 67.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 137.3
• Cab to Axle (in): 22.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 29.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.7
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.1
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 37.0
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 39.6
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 57.1
• Second Hip Room (in): 52.9
• Summary

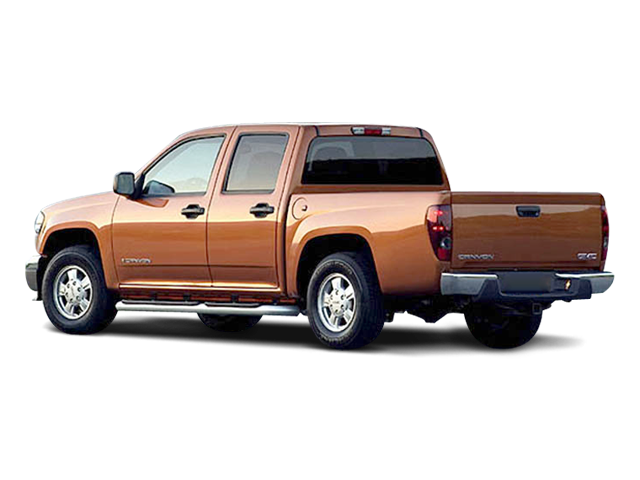

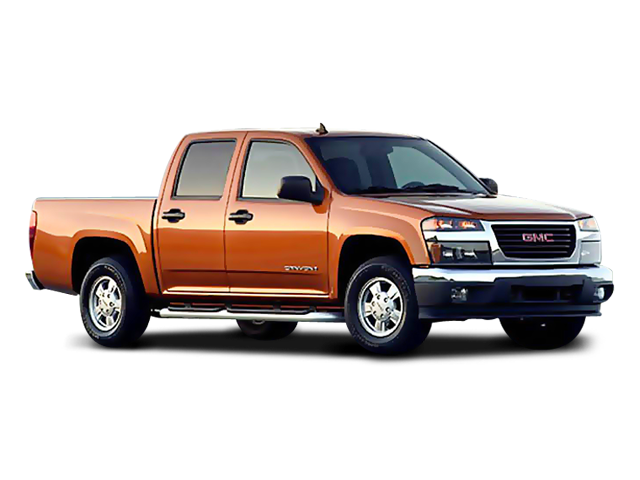

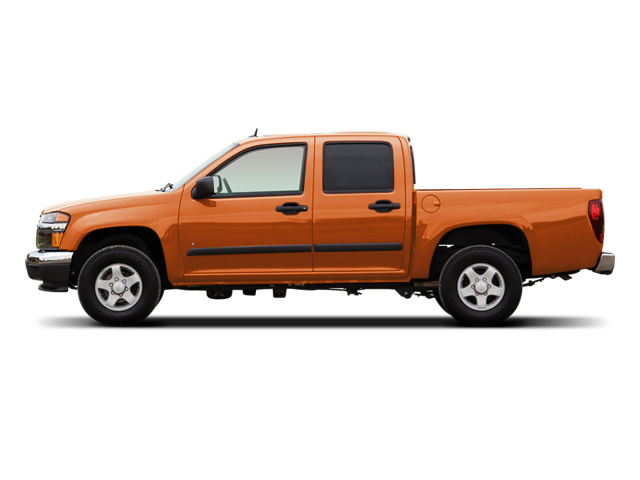

• Vehicle Name: GMC Canyon
• Body Style: Crew Cab
• Body Code: E63
